Welcome to wholesale and buy customized Lsoh Network Cable from our factory. You are welcomed to come to our factory to buy the latest selling, newest, cheap, fashion and high quality Lsoh Network Cable. You can rest assured to buy discount product from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Kennects is one of the
famous China Lsoh Network Cable manufacturers and Lsoh Network Cable suppliers.
Special Design for China Lsoh Network Cable, Wire. We've got 48 provincial
agencies in the country. We also have stable cooperation with several
international trading companies. Welcome to wholesale and buy customized Lsoh Network Cable from our factory. You can rest assured to buy discount product from us. We look forward to cooperating with you,
if you want to know more, you can consult us now, we will reply to you in time!
Application: | Local Communication Cable, LAN Cable |
Conductor Material: | Copper |
Cover Material: | PVC |

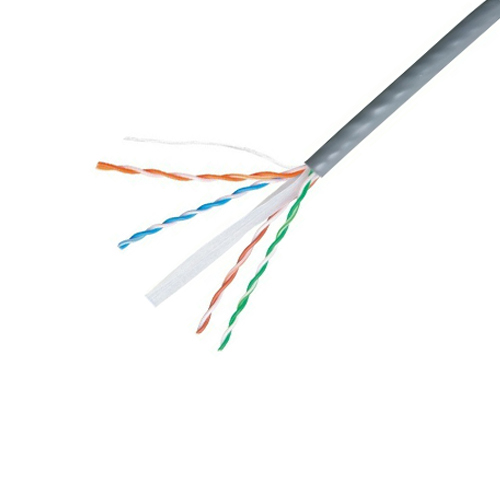

Type: | Cat 6 |
Material Shape: | Round Wire |
Conductor Type: | Solid |
Model NO. | KE CAT6 | Wire Core Material | Bare Copper Wire |
Certification | CE, RoHS | Model | Cat 6 |
Brand | Kennects | Certificate | Ce.RoHS |
Transport Package | Carton | Specification | Cat 6 |
Trademark | Kennects | Origin | Zhejiang, P. R. China |
HS Code | 8544491100 | Production Capacity | 200000000meter/Year |
-Related temperature 60ºC,75ºC
-Bare solid or stranded copper conductor
-Colour-coded PE insulation
-Rip cord(optional)
-Lead free PVC or LSOH jacket
-Flammability grade:CMX,CM,CMG,CMR,CMP
-UL verified to TIA/EIA 568B
-Reelex pull-out box packing
-100 Base-T4
-100 Base-TX
-100 VG-AnyLAN
-1000 Base-T(Gigabit Ethernet)
-1555 Mbps ATM
-622 Mbps ATM
Construction | Conductor | Insulation | No. of pairs | Shielding | Jacket |
UTP-SLD | 0.51mm | 0.91 | 4 |
|
5.2mm |
FTP-SLD | 0.53mm | 1 | 4 | Al-foil | 6.0mm |
SFTP-SLD | 0.53mm | 1 | 4 | Al foil+braiding | 6.6mm |
UTP-STR | 7/0.16mm | 0.91 | 4 |
|
5.2mm |
UTP-STR | 7/0.20mm | 1 | 4 |
|
5.5mm |
FTP-STR | 7/0.16mm | 1 | 4 | Al-foil | 6.0mm |
-Related temperature 60ºC,75ºC
-Bare solid or stranded copper conductor
-Colour-coded PE insulation
-Rip cord(optional)
-Lead free PVC or LSOH jacket
-Flammability grade:CMX,CM,CMG,CMR,CMP
-UL verified to TIA/EIA 568B
-Reelex pull-out box packing
-100 Base-T4
-100 Base-TX
-100 VG-AnyLAN
-1000 Base-T(Gigabit Ethernet)
-1555 Mbps ATM
-622 Mbps ATM
Construction | Conductor | Insulation | No. of pairs | Shielding | Jacket |
UTP-SLD | 0.57mm | 1.02 | 4 |
|
6mm |
FTP-SLD | 0.57mm | 1 | 4 | Al-foil | 6.3mm |
SFTP-SLD | 0.57mm | 1 | 4 | Al foil+cu braiding | 6.6mm |
UTP-STR | 7/0.20mm | 1 | 4 |
|
6.2mm |
FTP-STR | 7/0.16mm | 1 | 4 | Al-foil | 6.5mm |
-Related temperature 60ºC,75ºC
-Bare solid or stranded copper conductor
-Colour-coded PE insulation
-Rip cord(optional)
-Lead free PVC or LSOH jacket
-Flammability grade:CMX,CM,CMG,CMR,CMP
-UL verified to TIA/EIA 568B
-Reelex pull-out box packing
-10 GBASET-T,Ethernet
-100 Base-TX
-100 VG-AnyLAN
-1000 Base-T(Gigabit Ethernet)
-1555 Mbps ATM
-622 Mbps ATM
Construction | Conductor | Insulation | No. of pairs | Shielding | Shielding | Jacket |
SSTP 23AWG | 0.57mm | 1.35 | 4 | Aluminium/PE | BC braid | 7.7mm |
SSTP-STR | 7/0.16mm | 1.08 | 4 | Aluminium/PE | AL+BC braid | 5.8mm |
